Lab Instructions:

This lab is entirely focused on the ruminant and horse, considering two regions of the upper respiratory tract that get frequent clinical attention, albeit much more so in the horse.  Use prosections, wet and dry, and skulls with sculptured access to the paranasal sinuses, to explore and learn the anatomy. Due to limited numbers of specimens to study, Teams 1-12 may start with skull specimens to consider paranasal sinus anatomy, and Teams 13-25 may start with prosected head specimens of the horse to study guttural pouch anatomy.  Any dissection instructions provided in this lab are for the instruction team to follow, in their preparation of the prosected head cadavers.

Paranasal sinuses – horse and ruminant

Overview

Paranasal sinuses are a complex of interconnected, air-filled chambers between outer and inner cortices of bones of the skull, and some are enclosed by nasal conchal walls. They represent a type of “pneumatization” of bone similar to that which occurs in most birds.  Paranasal sinuses are extensive in the ungulates and there are important comparative differences.

In general there are four categories of sinuses, named for the bone or concha they reside in:

• Frontal
• Conchal—dorsal, middle, ventral
• Maxillary
• Sphenopalatine (or sphenoid and palatine)

The paranasal sinuses are lined with respiratory mucosa and they drain directly or indirectly into the nasal cavity.  This drainage is a function of active ciliary transport and passive gravity-dependent flow.  There are left and right sets of paranasal sinuses, divided on midline by a bony septum.  The exception to this, in the horse, is the small sphenopalatine sinus, which has considerable individual variation and sometimes communicates with its counterpart. What purpose do paranasal sinuses serve, besides causing problems when they get congested or infected? Because of their communication with the nasal cavity, they are usually considered with the respiratory system, even though they do not have any recognized respiratory function.  In essence, these sinuses allow for substantial expansion (growth) of the head, without a commensurate increase in the weight of the head.  By expanding the bones through pneumatization, the head becomes larger to accommodate more “things” (viz. teeth, glands, tongue, etc.) and the sinuses provide a collapsible, ‘crumple zone’, a non-vital protective shell around the brain and other deep head structures.  In other words, the sinuses allow for the head to get big and strong, without becoming so heavy that the animal could not hold it up.  The sinuses also have a role in innate immune function.

Horse paranasal sinuses

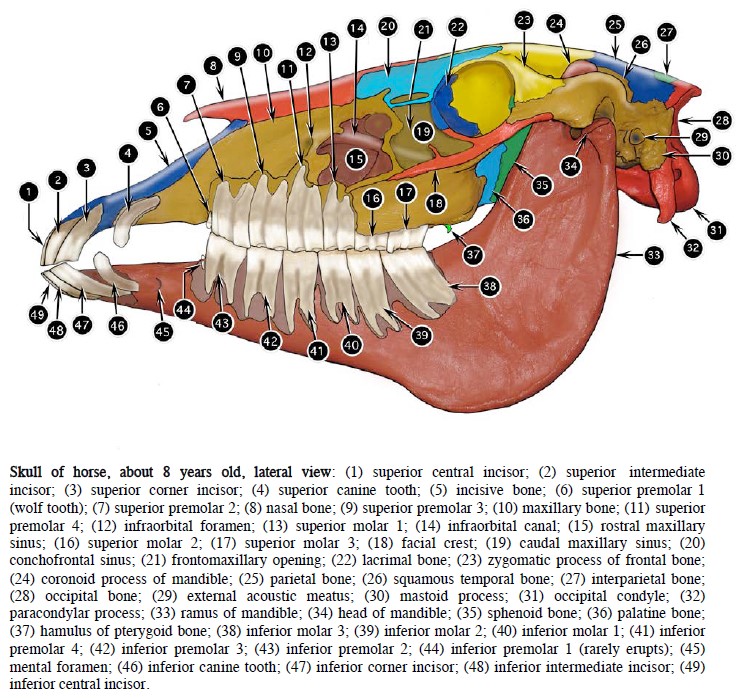

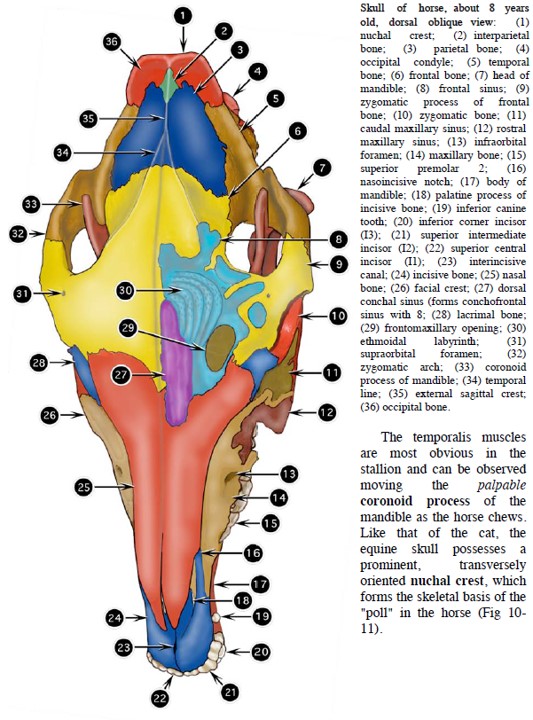

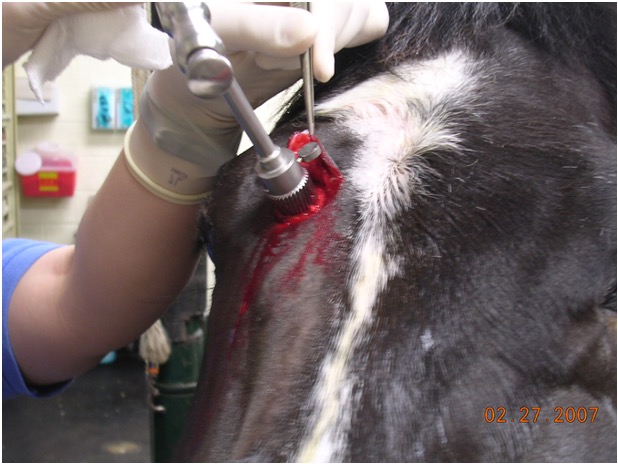

The frontal sinus is the largest of the paranasal sinuses in surface area. It is roughly triangular in shape and primarily occupies the forehead region and the area between the eyes. In the horse, at its rostromedial aspect, the frontal sinus communicates widely with the dorsal conchal sinus, and the combined sinuses are often referred to as the conchofrontal sinus.  The caudal limit of the frontal sinus overlays the cranial cavity, and awareness of this anatomical relationship is critical when entering the frontal sinus, to avoid damaging the CNS.  The ethmoidal conchae protrude dorsally into the floor of the frontal sinus.

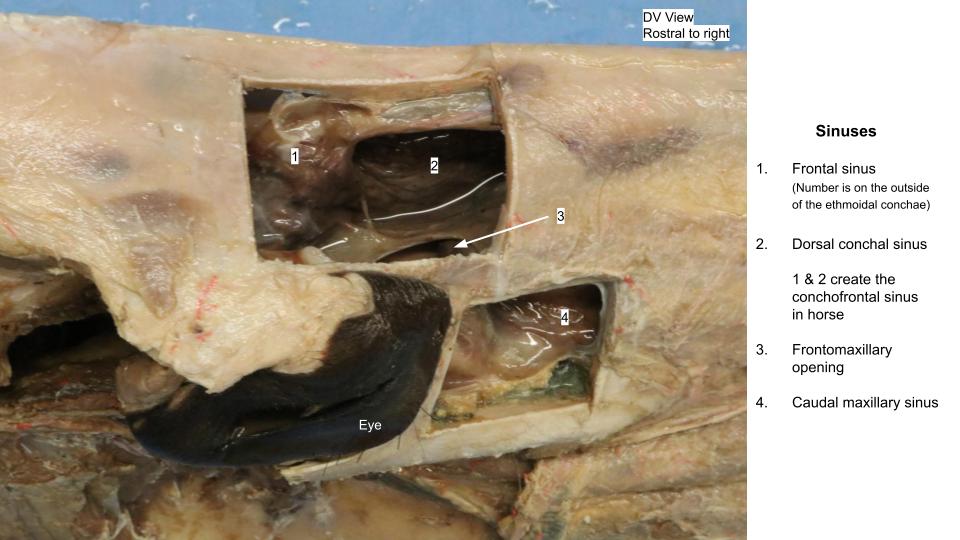

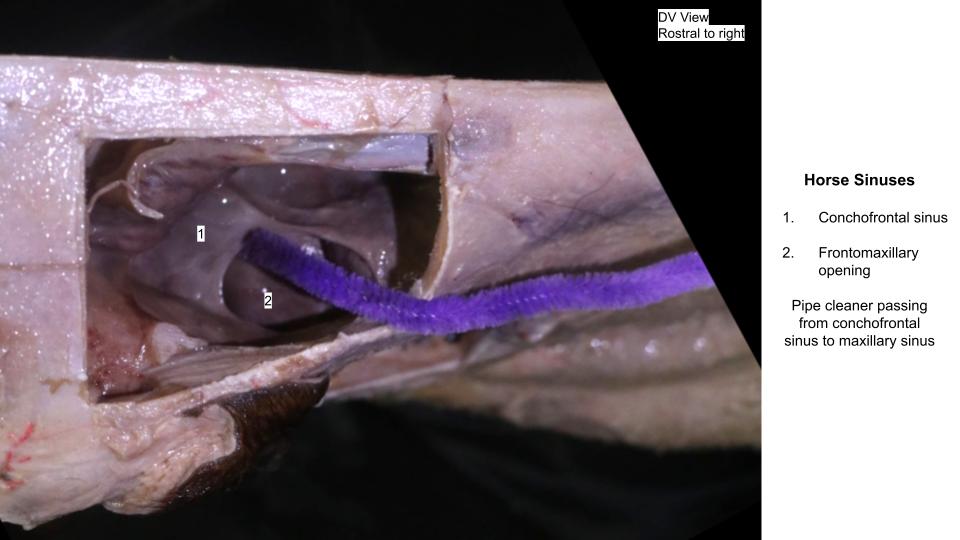

The conchofrontal sinus freely communicates with the caudal maxillary sinus through the large, ovoid frontomaxillary opening. This opening is rostrolateral to the protruding ethmoidal conchae and is typically 4–5 centimeters long and 2–3 centimeters wide.

As mentioned, the dorsal conchal sinus represents a rostromedial extension of the frontal sinus, the two spaces more commonly referred to as the conchofrontal sinus, in the horse.  A transverse conchal septum separates the dorsal conchal sinus from the scrolled, non-sinus portion of the dorsal nasal concha, continuing rostrally.  The middle conchal sinus is a smaller chamber encased by the middle nasal concha (also referred to as the greater ethmoturbinate).  The middle conchal sinus communicates with the caudal maxillary sinus.  The ventral conchal sinus is contained within the caudal part of the ventral nasal concha, partitioned by a conchal septum from the rostral scrolled portion  It communicates dorsally with the rostral maxillary sinus via the narrow conchomaxillary aperture.

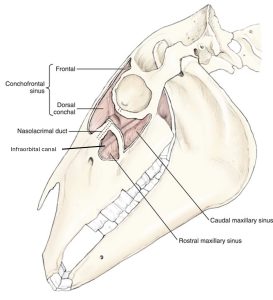

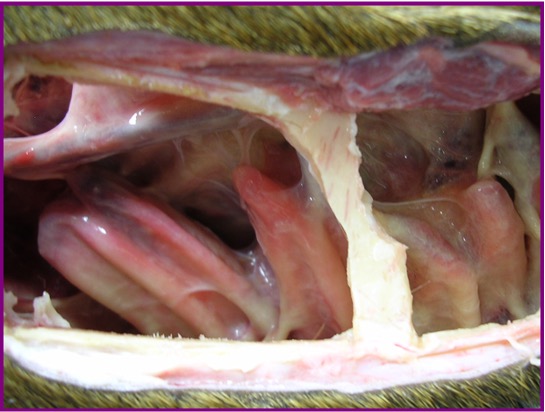

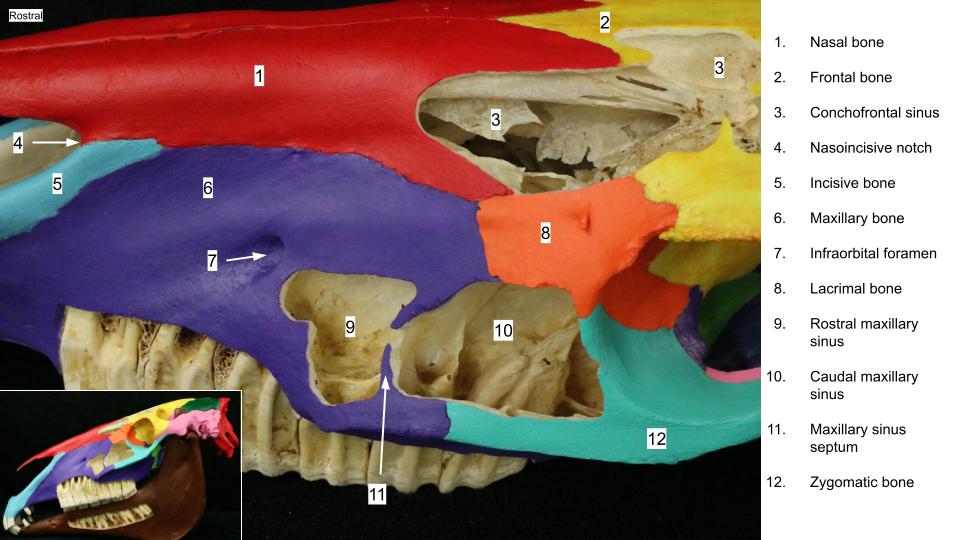

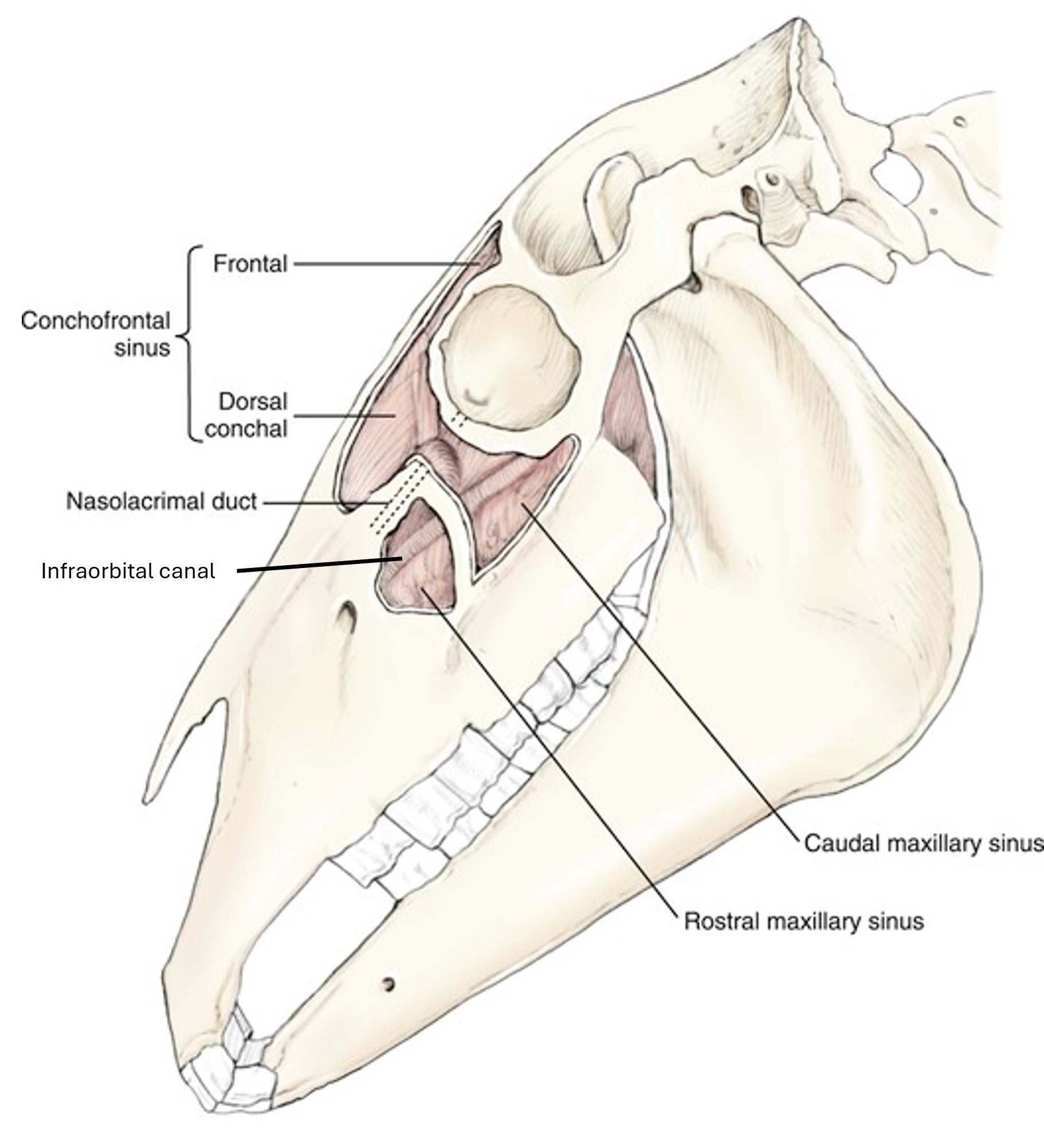

The maxillary sinus is the largest, in volume, of the paranasal sinuses. It is divided by a bony maxillary sinus septum into two chambers, the larger caudal maxillary sinus and the smaller rostral maxillary sinus. The septum runs obliquely in a medial, caudal, and dorsal direction from its lateral margin, which is usually located at about the level of the maxillary second molar tooth (Triadan 110/210).  The septum is very thin and rounded at its dorsal extent, and is readily seen on sinoscopy in the normal horse.  This thin, dorsal expansion of the maxillary septum is termed the maxillary septal bulla. The osseous infraorbital canal is an important feature passing through the maxillary sinus.  The canal encloses the infraorbital nerve and vessels along their rostrally directed path towards their exit at the infraorbital foramen. In the caudal maxillary sinus, the infraorbital canal partially divides the chamber into medial and lateral compartments.  In the rostral maxillary sinus the infraorbital canal and its supporting bone plate form the medial boundary of that sinus.  On the other side of this boundary, ie medial to it, is the space of the ventral conchal sinus.  These two sinuses connect over the top of the infraorbital canal, through the narrow conchomaxillary opening.

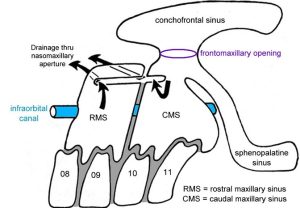

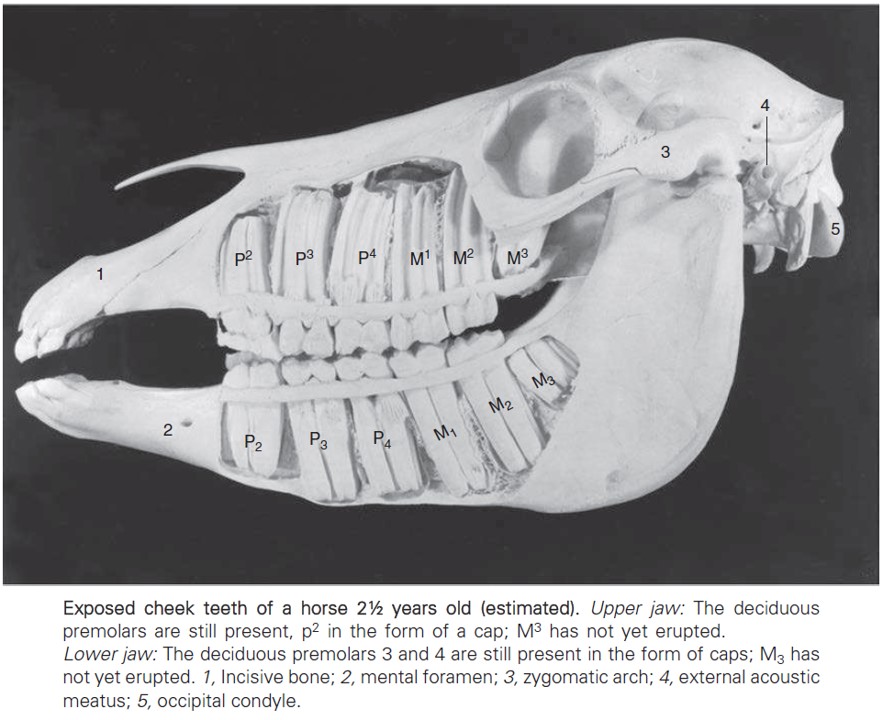

The rostral and caudal maxillary sinuses each communicate with the middle nasal meatus of the nasal cavity through the shared, slit-like nasomaxillary opening.  This is the final outflow path for paranasal sinus secretions.  The caudal maxillary sinus communicates dorsally with the conchofrontal sinus via the previously mentioned frontomaxillary opening. Caudomedially, the caudal maxillary sinus communicates with the sphenopalatine sinus, and medially it communicates with the middle conchal sinus.  Dental apices and reserve crowns of the last 3-4 maxillary cheek teeth, wrapped in alveolar bone, project into the maxillary sinus.  In the young animal much of the maxillary sinus space is occupied by these dental structures. As the animal matures and ages the sinus space expands with skull growth and as teeth erupt and wear.

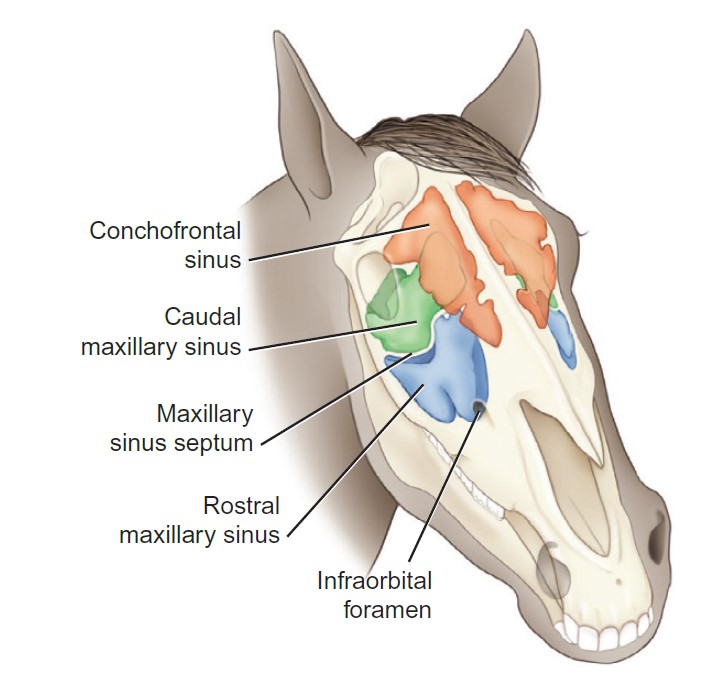

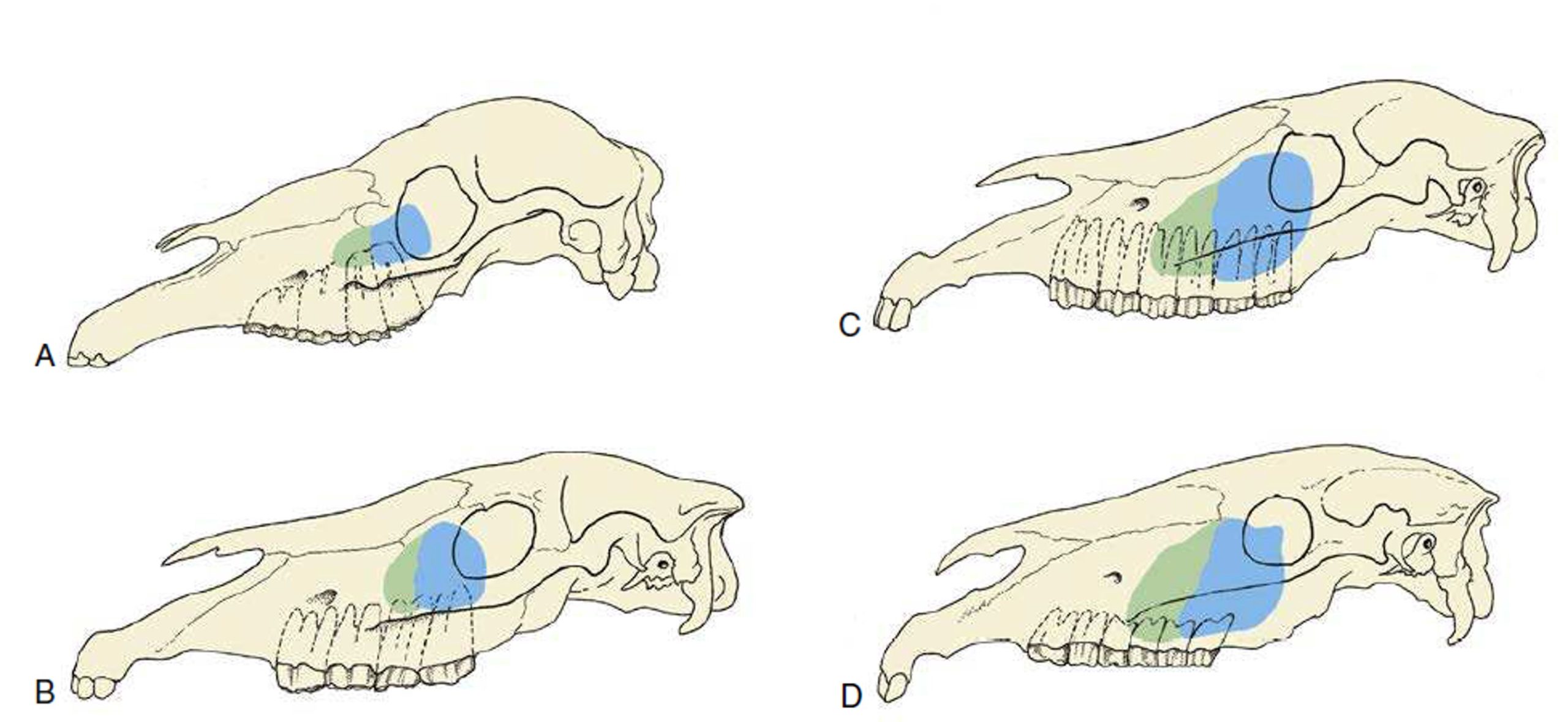

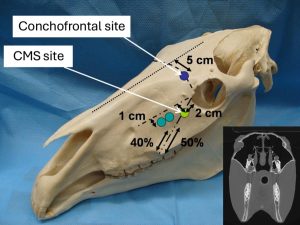

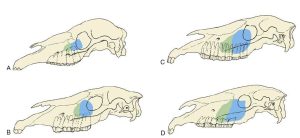

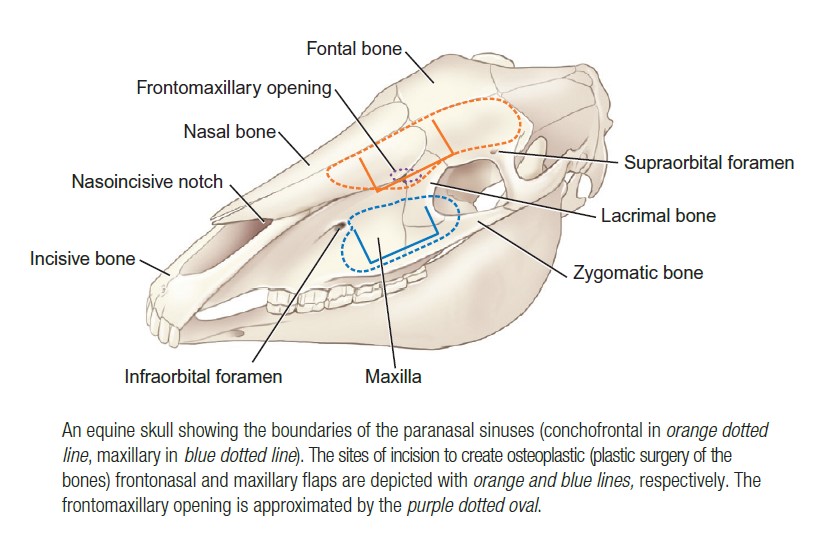

On the external skull the surgical boundaries of the maxillary sinus are outlined as follows:

1. Ventrally – facial crest
2. Rostrally – line drawn from rostral end of facial crest to infraorbital foramen
3. Dorsally – line drawn from infraorbital foramen to medial canthus of the eye
4. Caudally – the tangential edge of the ventral bony orbital rim, drawn from the dorsal to the ventral boundary.

The external dorsal margin of the maxillary sinus is approximately along the pathway of the lacrimal canal – the osseous canal that protects the nasolacrimal duct as it traverses from the eye to the rostral nasal cavity.

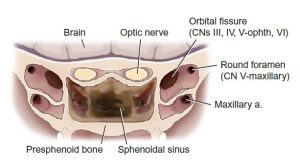

The small sphenoid and palatine sinuses in the horse frequently communicate with each other and therefore, they are referred to as the sphenopalatine sinus.   This sinus is located deep within the skull, caudoventral to the ethmoidal conchae and ventral to the rostral portion of the cranial vault.  Cranial nerves and vessels pass in canals around the sphenopalatine sinus. Unlike the other paranasal sinuses, a median bony septum separating left and right sides is not a consistent finding.  The sphenopalatine sinus communicates with the caudal maxillary sinus medial to the infraorbital canal.  Surgical access is relatively technically difficult and limited.

Ruminant paranasal sinuses

Ruminants have a similar set of paranasal sinuses as the horse, with important anatomical differences and features.

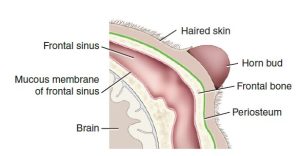

The frontal bones of the ox expand greatly as the calf matures into the adult, which accounts for the drastic change in head shape from the dome-like, “puppy skull” of the calf to the larger, more angular shape of the adult ox skull.  This frontal expansion is related to the development of the large frontal sinuses, which continue to enlarge somewhat as the animal ages.

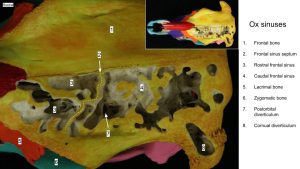

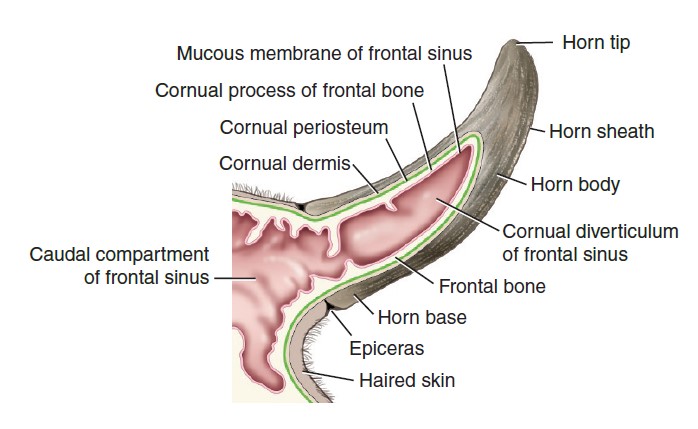

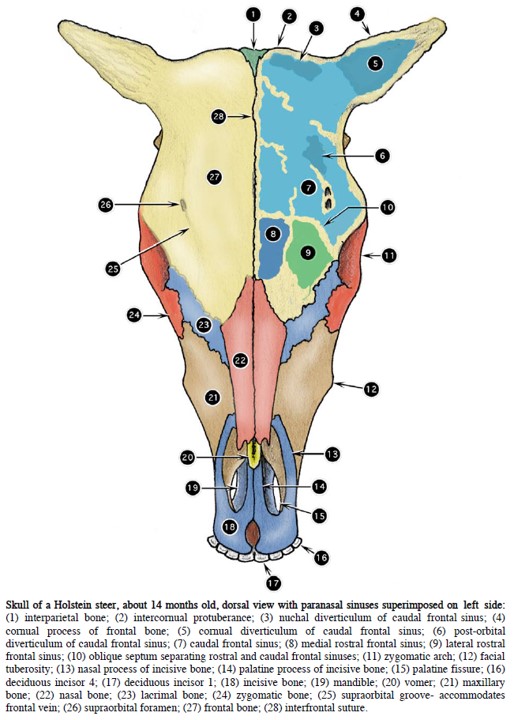

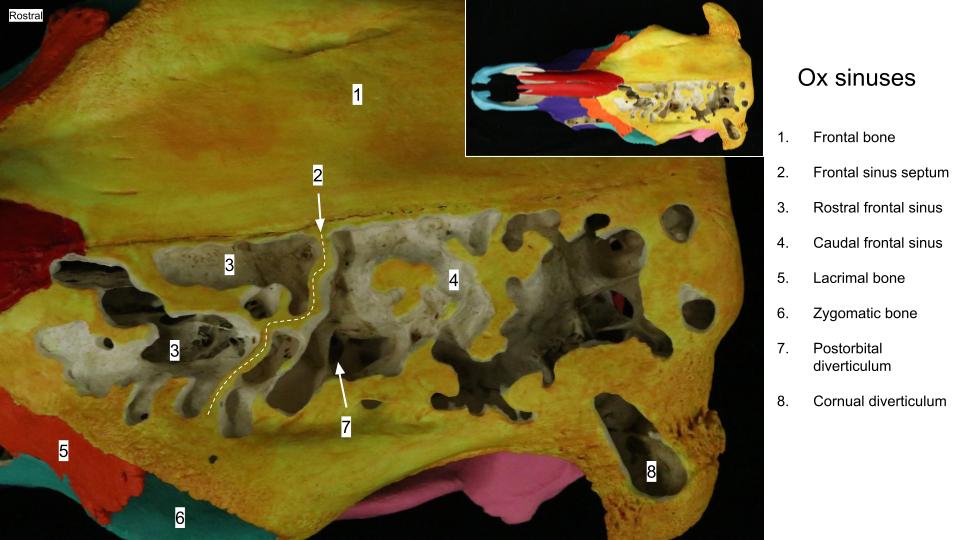

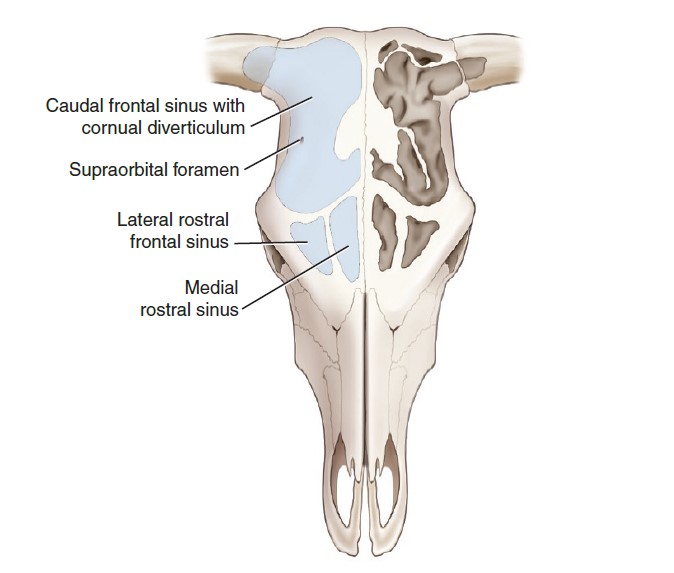

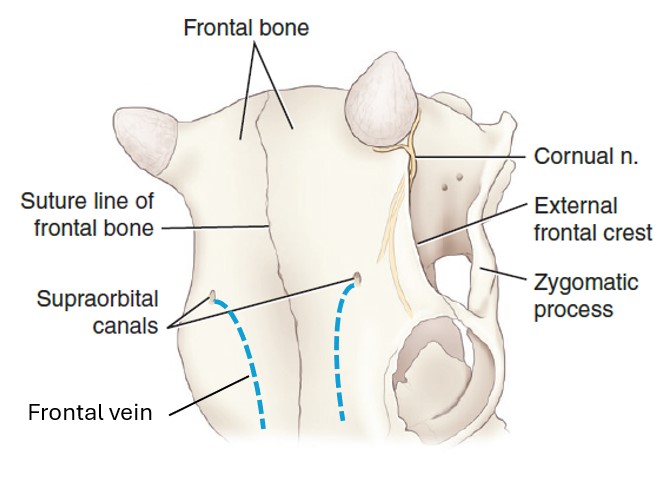

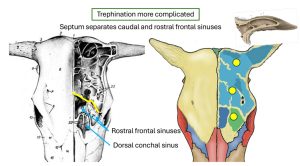

Unlike the horse, the frontal sinus of the ox is divided by an oblique frontal sinus septum into a large caudal frontal sinus and smaller rostral frontal sinus (which is further subdivided into medial and lateral compartments).  The caudal frontal sinus contains a cornual diverticulum, which extends into the cornual process of the frontal bone, the process supporting the horn (see clinical relevance box).  There is also a deep postorbital diverticulum and a nuchal diverticulum of the caudal frontal sinus. These recesses are difficult to adequately lavage and drain (see clinical relevance box).  FYI – in small ruminants the frontal sinus is divided into a large lateral and smaller medial compartment only. In horned sheep and goats, it is the lateral frontal sinus that has the cornual diverticulum extending into the cornual process.

The various frontal sinuses of the ruminant drain separately into the nasal cavity, through openings at the ethmoidal conchae.

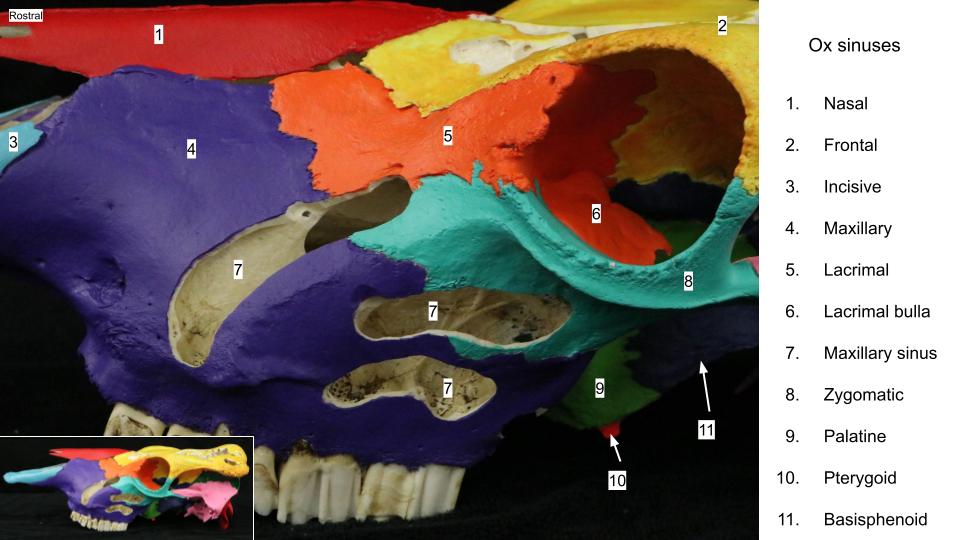

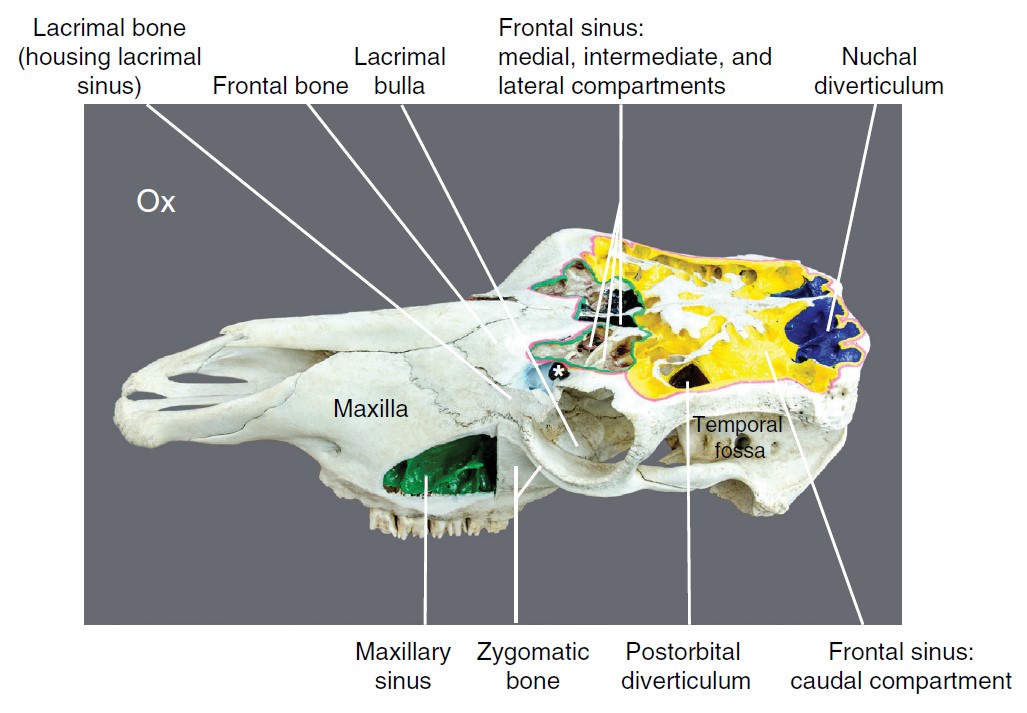

Also of important difference between the horse and ruminant, the maxillary sinus of the ox is not divided into rostral and caudal compartments, rather, it is a large singular space.  The ruminant maxillary sinus has a clinically important diverticulum that extends caudally under the eye. This is the lacrimal bulla, which is an extremely thin-walled (eggshell) extension of the maxillary sinus (see clinical relevance box). The maxillary sinus drains into the nasal cavity at the middle nasal meatus. It also communicates with the lacrimal sinus and the palatine sinus.

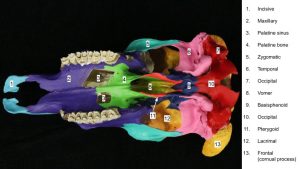

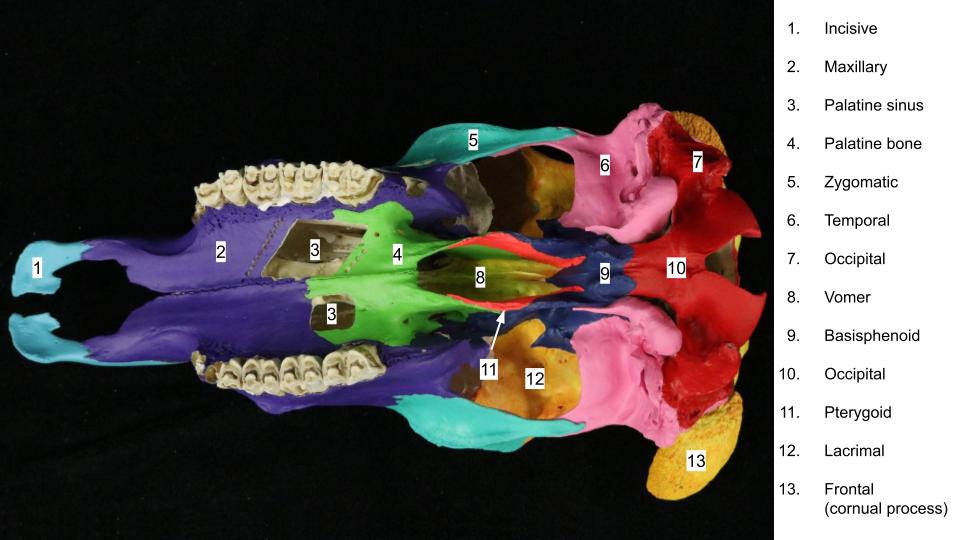

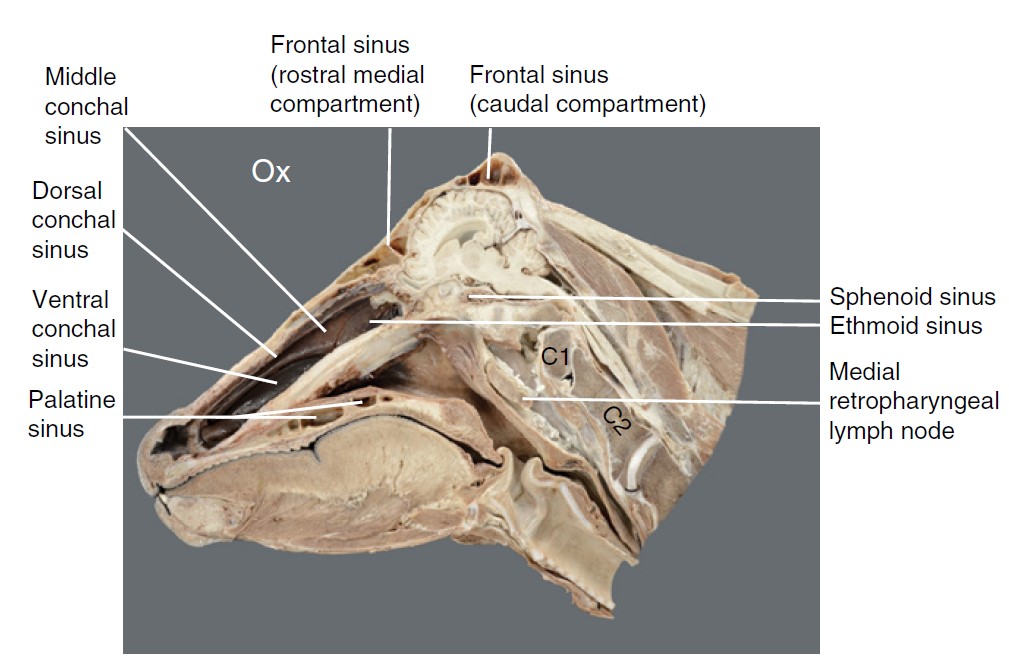

The sphenoid and palatine sinuses are independent in the ruminant.  The palatine sinus is identified as an excavation of the hard palate and it communicates with the maxillary sinus over the dorsal aspect of the osseous infraorbital canal.  The palatine sinus can be seen on the medial surface of the sectioned ruminant heads.

The lacrimal bone of the ruminant encloses a lacrimal sinus. This sinus should not be confused with the lacrimal bulla of the maxillary sinus.  Conchal sinuses are also present in the ruminant, as in the horse.

Porcine paranasal sinuses – FYI

Although poorly developed or absent in the newborn pig, the extensive paranasal sinuses of the adult form a complex of air-filled spaces that almost completely surrounds the cranial cavity!  The frontal sinuses are divided into rostral and caudal parts, and a large sphenoid sinus develops.  The maxillary sinuses even invade the rostral parts of the zygomatic arches.  Out of curiosity, refer to a skull specimen and note the extent of, and the many complicated diverticula in, the paranasal sinuses of the adult pig.

Guttural pouches and related structures – horse

(Guttur [L] = throat.  Guttural means ‘of the throat’.  ‘Guttural’ is used to describe a hoarse, harsh speech sound generated in the back of the throat.  Please note that the correct spelling is guttural, not gutteral).

The guttural pouch is a diverticulum of the auditory (Eustacian) tube.   The auditory tube passes from the tympanic cavity of the middle ear to the nasopharynx and allows for atmospheric pressure equalization across the tympanic membrane (eardrum).  Guttural pouches are present in several wild species of perissodactyls (e.g., zebra, tapir), and are unique, among our domestic species, to equidae.  There are left and right guttural pouches and their walls are comprised of a transparent, glistening respiratory mucosa.  Each pouch normally contains about 300-500 ml of air.  They are related dorsally to the base of the skull, atlas, axis, and several muscles, the largest of which is the longus capitis m.  They lie dorsal and dorsolateral to the pharynx and larynx.  Laterally the pouches are related to the deep surface of the parotid salivary glands. Vital cranial nerves and vessels pass in close association to the guttural pouches and the hyoid apparatus and retropharyngeal lymphocenters are also related.

Left and right guttural pouches are separated on midline by a median septum, the thin membrane where their medial walls are adjacent to each other. Caudodorsally the median septum is expanded and filled by the presence of the ventral muscles of the head—the longus capitis and rectus capitis ventralis muscles—as they insert on the basioccipital bone.

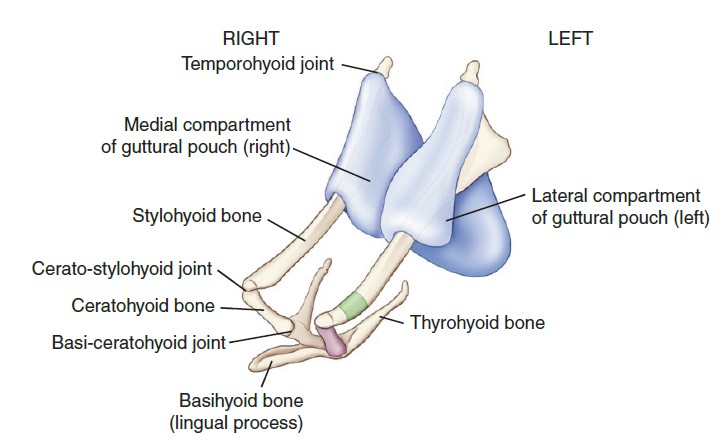

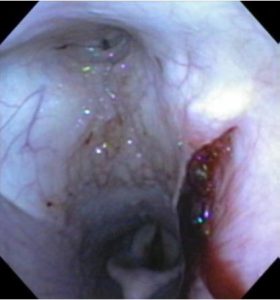

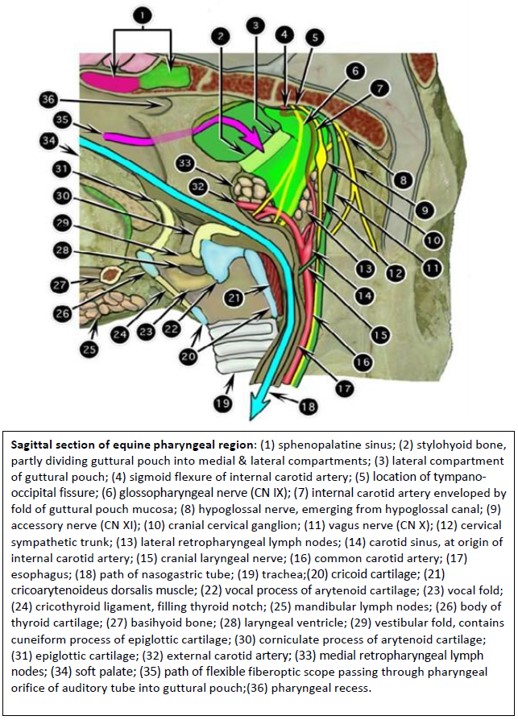

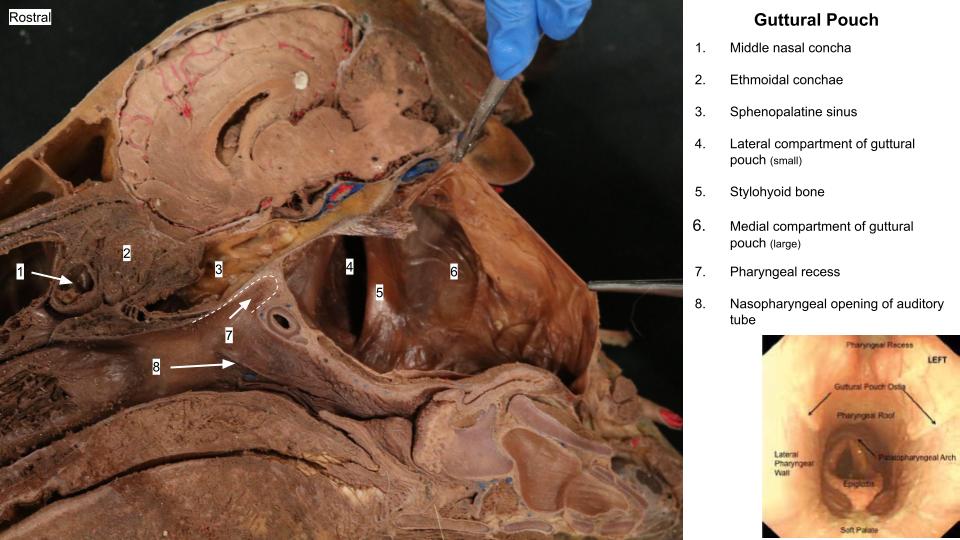

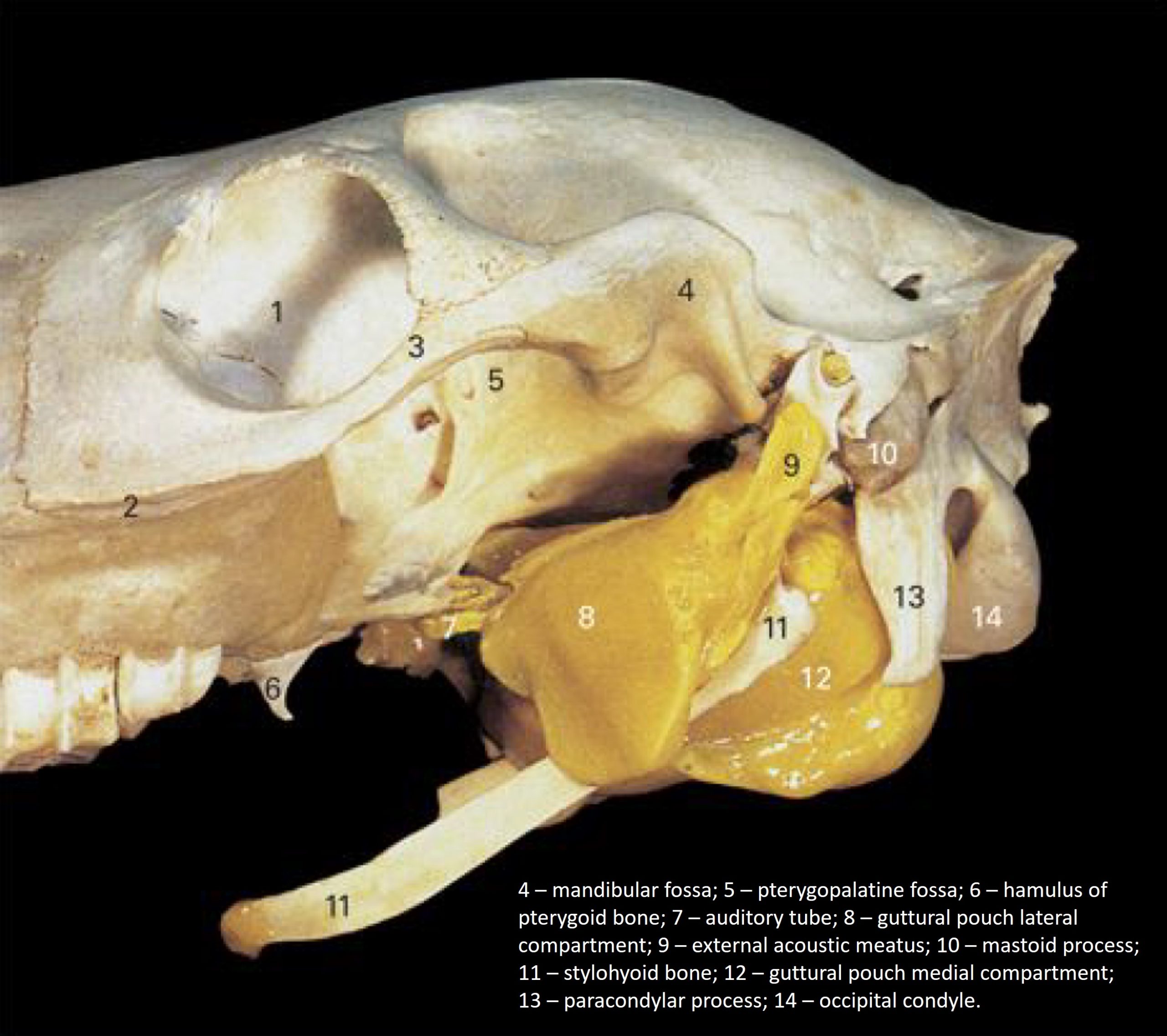

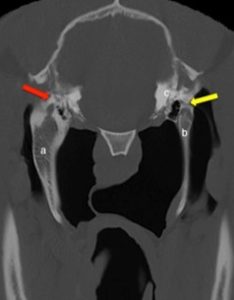

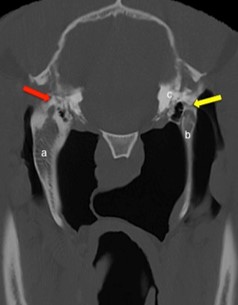

Each pouch is subdivided into a larger medial and smaller lateral compartment by the prominent stylohyoid bone, which indents the pouch ventrally.  The attachment of the stylohyoid bone to the skull, forming the temporohyoid joint (THJ), is visible endoscopically, dorsocaudally in the pouch.  The pouches are very closely related dorsomedially to the atlanto-occipital joint. Each pouch communicates with the nasopharynx by its ipsilateral pharyngeal opening of the auditory tube. The pharyngeal opening is funnel-shaped and the medial lamina of the opening is composed of fibrocartilage. The pharyngeal openings dilate during swallowing and are otherwise normally passively closed.

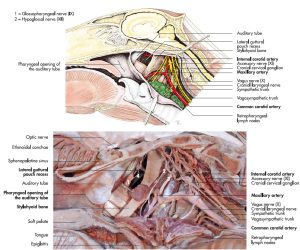

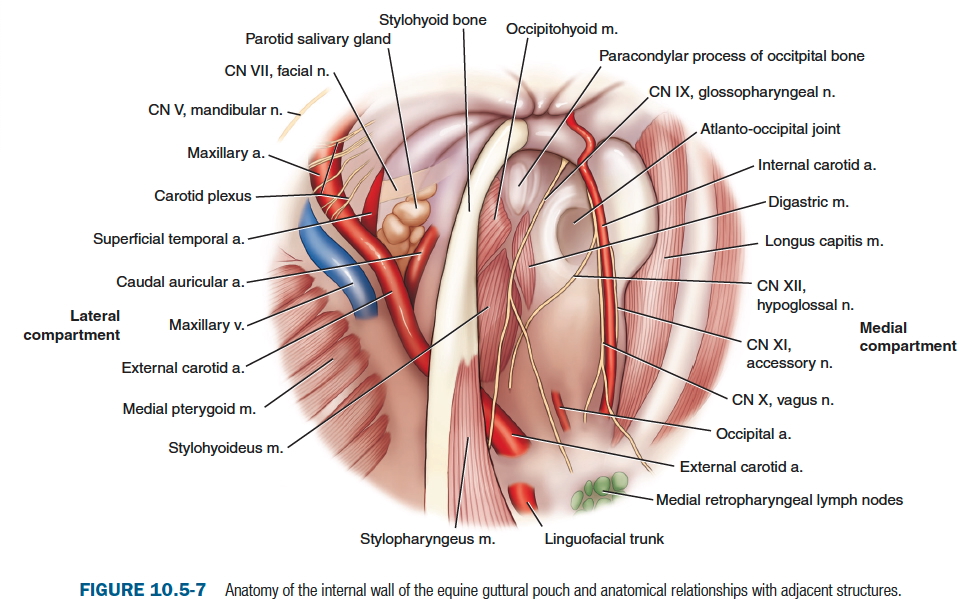

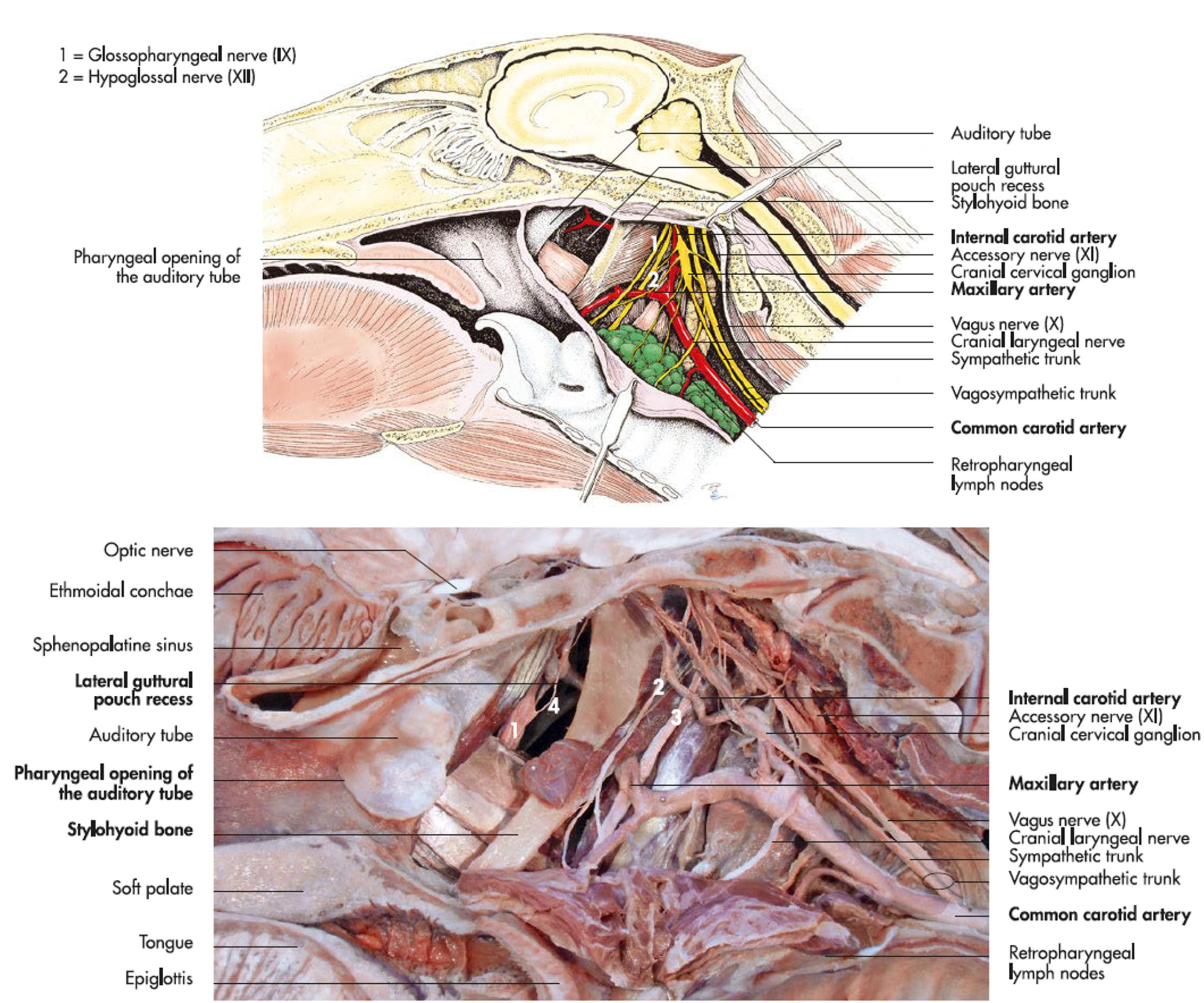

Multiple vessels and nerves track directly behind the transparent mucosal walls of both guttural pouch compartments (recall, these structures were studied in the Nervous and Cardiovascular systems). These vessels and nerves are visible during endoscopic examination and are vulnerable to guttural pouch disease.  The internal carotid artery and cranial nerves IX, X, XI, and XII pass in the caudal wall of the medial compartment. The sympathetic trunk and its cranial cervical ganglion are also in the vicinity.  Ventrally, the external carotid artery is associated with the floor of the medial compartment before it passes deep to the stylohyoid bone and is then associated with the wall of the lateral compartment. In the lateral compartment, the external carotid artery provides the caudal auricular artery close to the stylohyoid bone, and then continues as the maxillary artery in the dorsal wall of the lateral compartment, after the superficial temporal artery branches off. The maxillary vein lies adjacent to the external carotid artery in the lateral compartment. Cranial nerves VII and VIII pass in close proximity to the temporohyoid joint, and may be affected by disease of the joint (see clinical relevance box). CN VII is also related to the dorsocaudal wall of the lateral compartment.

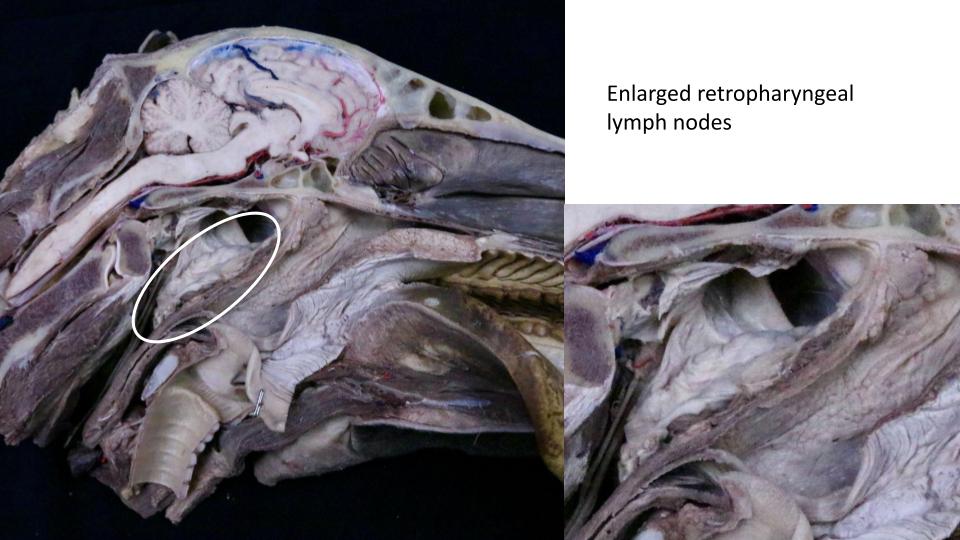

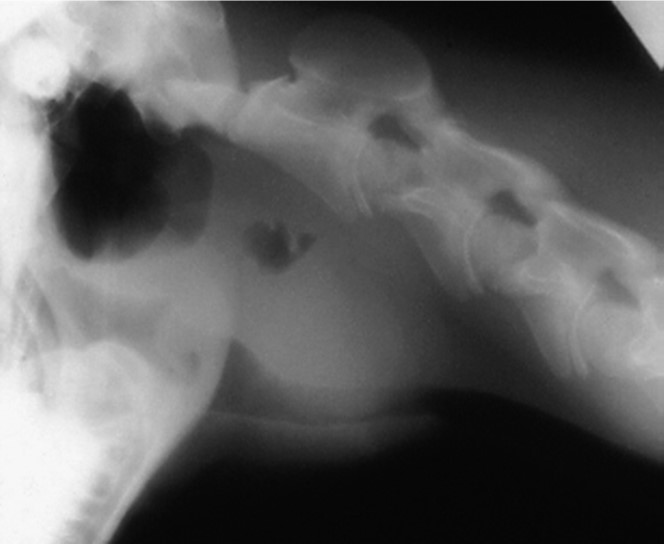

Both medial and lateral retropharyngeal lymph nodes are associated with the wall of the guttural pouch, and the two groups often coalesce at the division of the common carotid artery.  The larger medial retropharyngeal lymph nodes are those most closely associated with the wall of the pharynx, lying under the floor of the medial compartment.  The lateral nodes lie more on the caudodorsal aspect of the pouch near the internal carotid artery and wing of the atlas.  Because of the close relationship of these two groups of nodes in the horse, they can be considered collectively as retropharyngeal lymph nodes (these lymph nodes were also studied in the Cardiovascular unit).

FYI – What’s the Purpose of the Guttural Pouches Anyway? Dr. Smallwood suggests the following (paraphrased):  “The guttural pouches have little, if anything, to do with the respiratory system, and serve primarily a cardiovascular function.  In addition to cooling the arterial blood prior to reaching the brain, the pouches may also function to regulate intracranial blood pressure through their intimate relationship with the internal carotid artery. My hypothesis is that the guttural pouches of the horse serve as “pneumatic cuffs” around the internal carotid arteries, and work in the following way.  When a horse lowers its head to graze or drink, the abundant soft tissues on the caudodorsal aspect of the pouch (lymph nodes, salivary tissue, etc.) fall forward and compress the pouch.  Assuming the horse can concurrently close off the pharyngeal opening, air pressure within the pouch goes up (like in a blood pressure cuff) and the artery, suspended in its little “mesartery” and surrounded by air, is compressed.  This compression reduces the diameter of the artery, thereby increasing resistance and serving to prevent a high-pressure surge of blood pressure into the cerebral circulation until the baroreceptor reflex can accommodate for the change in hemostatic pressure.  In essence, the horse has solved the same problem as the ruminant and cat with their rete mirabile, by using an entirely different strategy.
